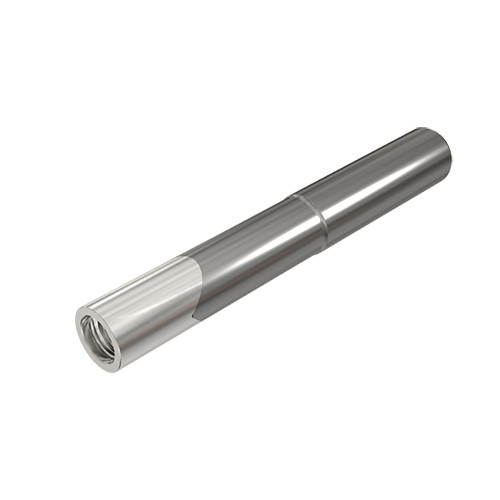

MM S-A-L4.0/1.5C50T08C-CH
MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes.
Price: Log in For Price

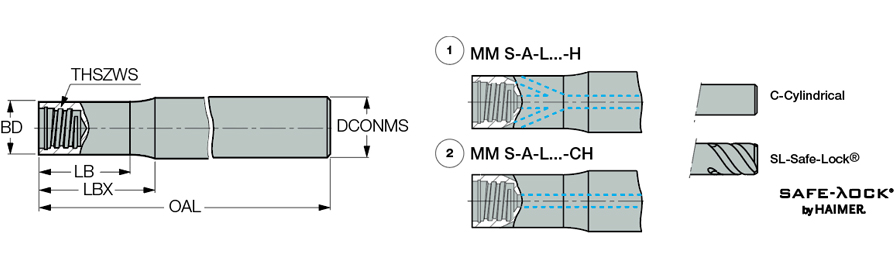

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T08 | Body Diameter (BD) | 0.48″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Body Length (LB) | 1.43″ |
| Material | Carbide | Weight of Item (WT) | 0 Lbs |
| Overall Length (OAL) | 4″ | Measurement Type | Inch |
| Body Length Maximum (LBX) | 1-1/2″ | Rotational Speed Maximum (RPMX) | 42000 Rev/min |
| Coolant Supply Property (CSP) | Through Hole | Body Material | Carbide |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection |
