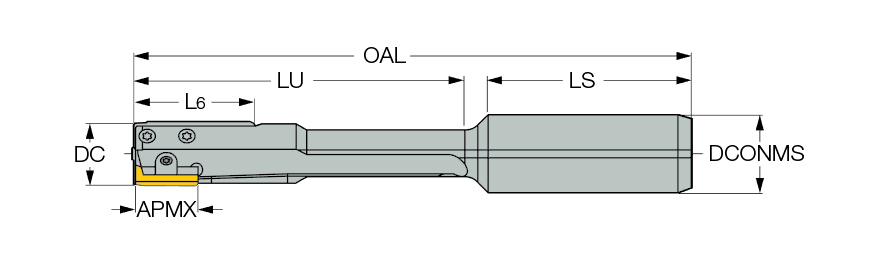

| Cutting Diameter (DC) | 17 mm | Overall Length (OAL) | 165 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Shank Length (LS) | 50 mm |
| Application | | Stacked Plates | Through & Axial Groove | Through & Perpendicular Holes | Through & Radial Groove | Through Hole | | Body Material | Steel |
| Usable Length (LU) | 110 mm | Tool Type | Indexable Reaming Tools |
| Insert Seat Size Code (SSC) | 3.0 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 17 mm |
Product Features
| Family Description | Single-edged indexable reamers for through holes. | Country of Origin | Italy |

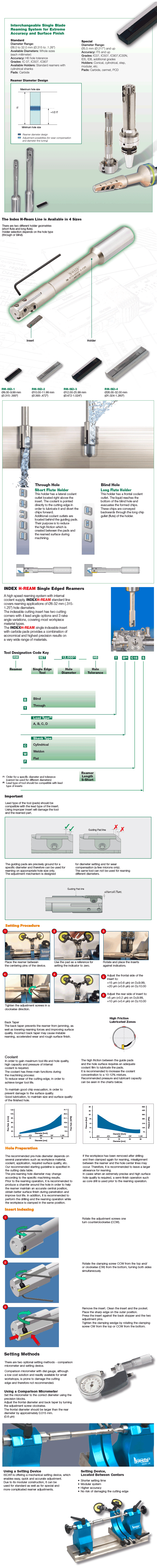

| Remarks | For user guide and cutting conditions, click on More Info |
Shipping Info
Package Weight
0.220
