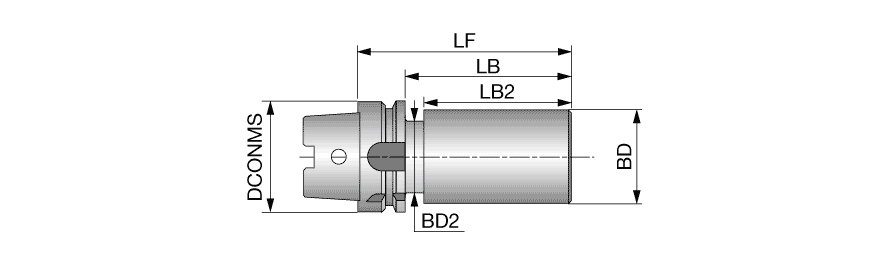

| Body Length (LB) | 2.913″ | Body Diameter_2 (BD_2) | 2.079″ |
| Body Length_2 (LB_2) | 2.185″ | Application | | Face contact interface | |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Tool Type | HSK |
| Functional Length (LF) | 3.937″ | Measurement Type | Inch |
| Body Diameter (BD) | 2.48″ | Body Material | Steel |
Product Features

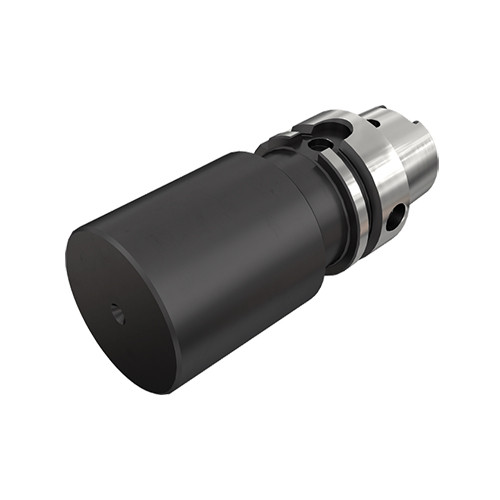

| Family Description | Blanks for holders with HSK shank | Country of Origin | ISRAEL |
| Remarks | Material: Case hardened alloy steel. Shank hardness 58 HRc minimum. Nose hardness 35 37 HRc. |
Shipping Info
Package Weight
5.221
