TEB030A2-045/12C6M50 AH750

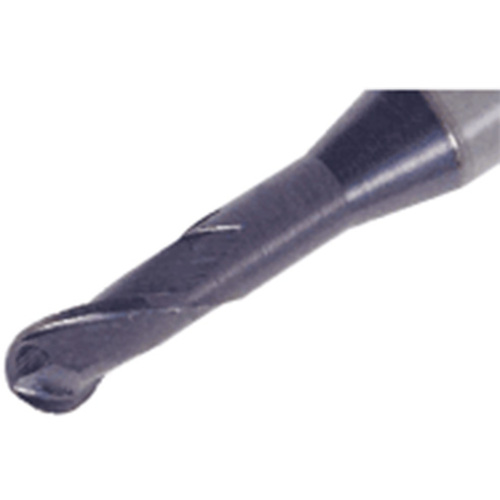

2 flute ball nose rib processing endmill, 30 deg helix angle, for hardened steel up to 55 HRC
Price: Log in For Price

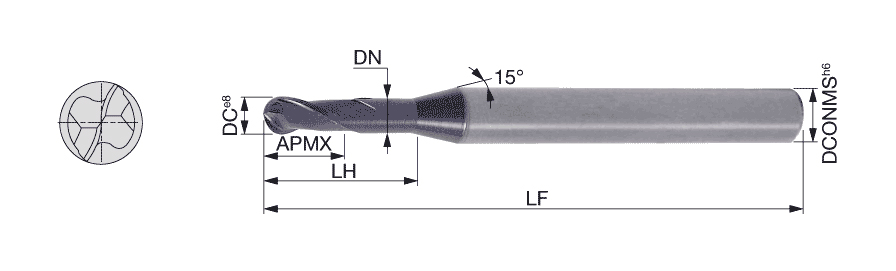

| Cutting Diameter (DC) | 3 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 4.5 mm | Application | | Profile Milling | |
| Overall Length (OAL) | 50 mm | Corner Radius (RE) | 1.5 mm |
| Cutting Edge Material | Carbide | Neck Diameter (DN) | 2.85 mm |
| Coating | TiAlN | Grade | AH750 |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
Product Features
| Family Description | 2 flute ball nose rib processing endmill, 30 deg helix angle, for hardened steel up to 55 HRC | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.040
