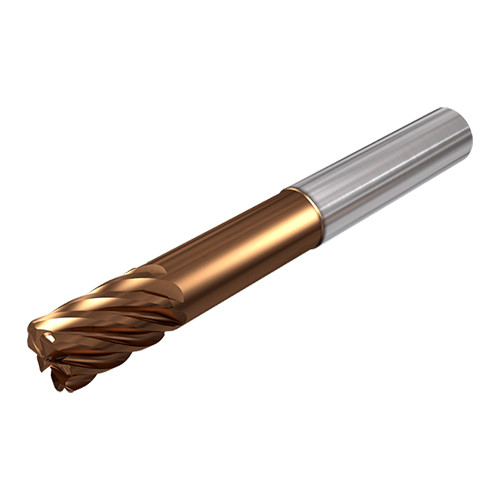

ECI-7 250-500C060VF2 IC608
7 flute endmill with and without relieved neck, assorted radii and variable pitch for chatter dampening
Price: Log in For Price

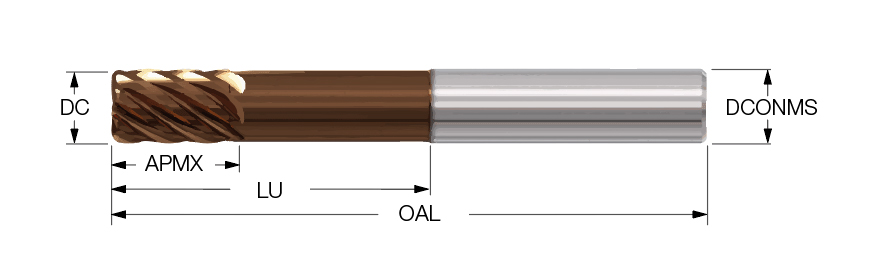

| Cutting Diameter (DC) | 1/4″ | Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 0.06″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 2″ | Grade | IC608 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide non center cutting endmills 90° |
| Coating | AlTiCrSiN | Maximum Feed per Tooth (fz(max)) | 0.0022 ″/tooth |
| Flute Count (NOF) | 7 | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Shank Type | Round | Coolant Supply Property (CSP) | External |
| End Shape | Corner Radius | Body Material | Carbide |
| Usable Length (LU) | 1/2″ | Decimal Equivalent | 0.25″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
Product Features
| Family Description | 7 flute endmill with and without relieved neck, assorted radii and variable pitch for chatter dampening | Country of Origin | USA |
