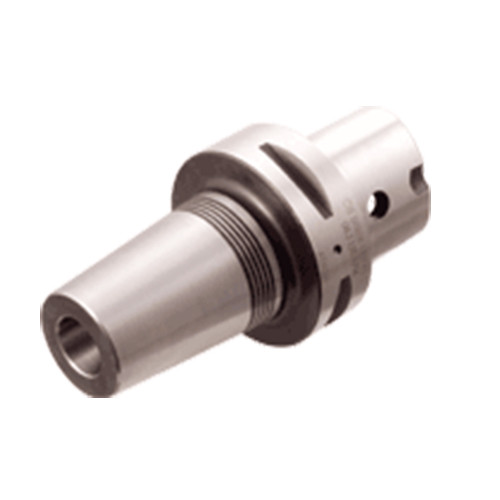

C4 SRKIN 20X85
Shrink Fit Holder ; 20 mm Hole Dia. ; 40 mm Shank Dia. ; 109 mm OAL ; Series SHRINK
Price: Log in For Price

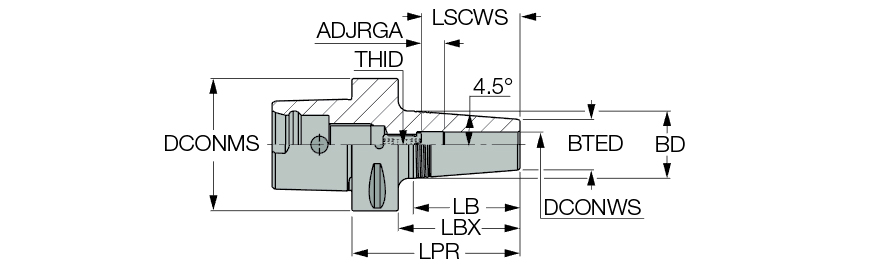

| Connection Diameter Machine Side (DCONMS) | 40 mm | Overall Length (OAL) | 109 mm |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Shank Standard | CAMFIX |
| Shank Size (SS) | 40 | Coolant Supply Property (CSP) | Through Hole |
| Body Length (LB) | 57.2 mm | Clamping Length Workpiece Side (LSCWS) | 52 mm |
| Body Diameter (BD) | 42 mm | Series/List # | SHRINK |
| Body Taper End Diameter (BTED) | 33 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 85 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Length Maximum (LBX) | 65 mm | Body Material | Steel |
Product Features
| Family Description | Thermal shrink chucks with integral CAMFIX (ISO26623-1 standard) tapered shanks, for solid carbide, HSS and steel tools with h6 tolerance. | Country of Origin | Israel |
| Remarks | The adjustment screw has an internal coolant hole Use only inductive heating device for SRKIN holders For shrink units information, Click on More Info |
Shipping Info
Additional Fees and Notes
0
Package Weight
1.563
