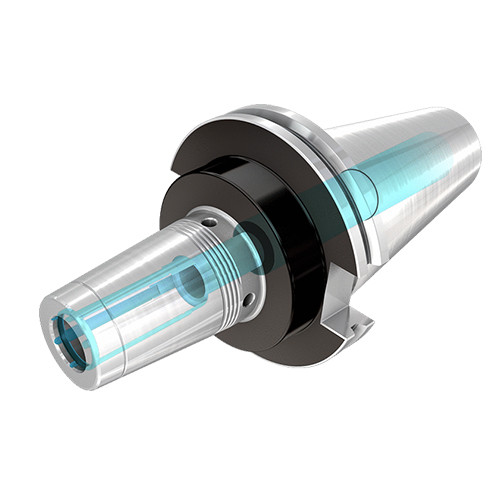

CAT50 SRKIN 1/4 X3.500 CX
Thermal shrink chucks with Caterpillar Form AD tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance
Price: Log in For Price

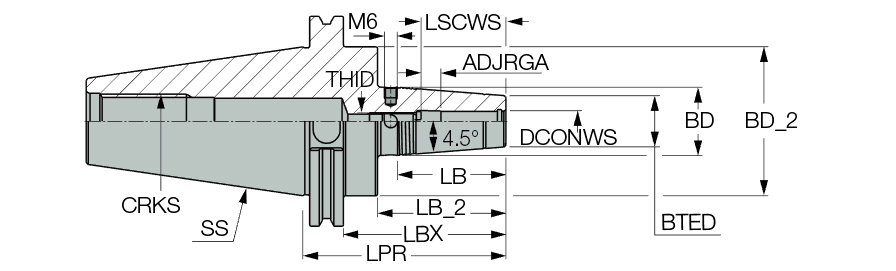

| Connection Diameter Workpiece Side (DCONWS) | 1/4″ | Protruding Length (LPR) | 3-1/2″ |
| Shank Size (SS) | 50 | Body Length Maximum (LBX) | 2-3/4″ |
| Body Length (LB) | 1.501″ | Clamping Length Workpiece Side (LSCWS) | 1.34″ |
| Body Length_2 (LB_2) | 2.12″ | Series/List # | SHRINK |
| Body Diameter (BD) | 1.063″ | Measurement Type | Inch |
| Body Diameter_2 (BD_2) | 2.752″ | Body Material | Steel |
| Body Taper End Diameter (BTED) | 0.827″ |
Product Features
| Family Description | Thermal shrink chucks with Caterpillar Form AD tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance | Country of Origin | Israel |
| Remarks | Preset screw CX allows supply of coolant via JET groove - do not remove |
Shipping Info
Package Weight
7.231
