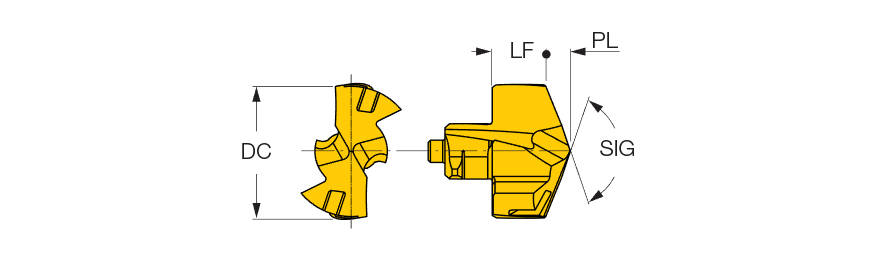

| Cutting Diameter (DC) | 1.016″ | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Chamfering | Drilling | Gundrills | | Insert Thickness (S) | 0.571″ |
| Grade | IC908 | Point Length (PL) | 0.15551″ |
| Tool Type | Drilling Heads | Point Angle (SIG) | 140 Degrees |
| Insert Seat Size Code (SSC) | 25.0 | Coating | TiAlN |
| Functional Length (LF) | 0.415″ | Body Material | Carbide |
Product Features
| Family Description | Exchangeable double margin drilling heads for DCN drills, for machining ISO P materials with high surface finish results (up to 1.6 Ra). | Country of Origin | Israel |
| Remarks | Provides high surface finish of up to 64 microinches Ra hole cylindricity and straightness of up to.002 |
Shipping Info
Package Weight
0.130
