| Thread Diameter Size (TDZ) | M7 | Tool Type | Machine Through Hole Taps |
| Thread Pitch (TP) | 1 mm | Coating | Uncoated |
| Thread Standard | THFT | | Drive Size (DRVS) | 0.217″ |
| Overall Length (OAL) | 3.15″ | Flute Length | 78 mm |
| Thread Cutting Part Length (THL) | 0.669″ | Flute Type | Straight |
| Usable Length (LU) | 1.18″ | Style | DIN 371 |
| Connection Diameter Machine Side (DCONMS) | 0.276″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|45 Degrees | Measurement Type | Inch |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Grade | HE |
| Cutting Edge Material | HSS | Thread Size | M7 × 1 |
| Thread Tolerance Class (TCTR) | 6HX | Body Material | HSS |
| Standard | DIN 371 | Thread Form Type (THFT) | M60 |
Product Features

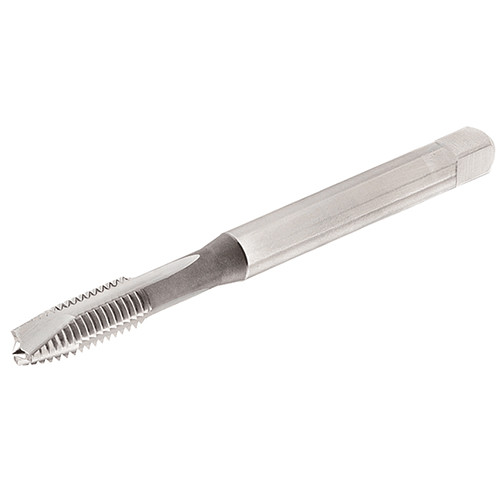

| Family Description | DIN 13 HSS gun point machine taps - ISO metric coarse threads for a wide range of materials. | Country of Origin | Korea |
